Base metal of either Zinc-aluminum or Galvanized coated steel. An exterior surface coating on painted panels of 15 microns of epoxy primer with a highly durable polyester finish.
The panels used in the construction of SUPPORTS pre-engineered buildings are composed of the following:
Base metal of either Zinc-aluminum or Galvanized coated steel. An exterior surface coating on painted panels of 15 microns of epoxy primer with a highly durable polyester finish.
An interior surface coating on painted panels of 10 microns of epoxy primer and modified polyester or foam spec.

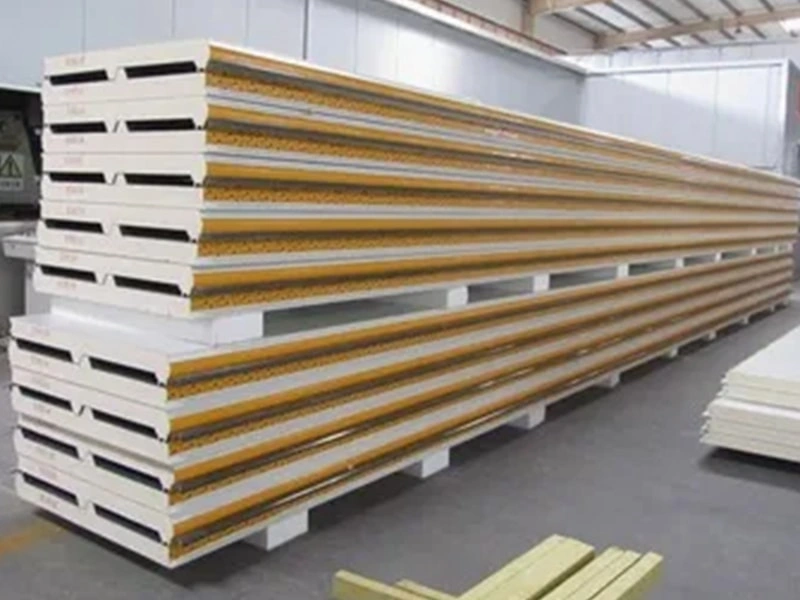

In addition, Insulated Panels have a factory injected Polyisocyanurate (PIR) core which has been recognized as the most resistant material to heat transmission.
| Density | 40--45kg/m3 |
| Thermal conductivity | 0.019--0.023W/M.K |
| Moisture permeability | ≤3.34Ng/Pa/m.s |
| Water absorption | ≤0.5g/100cm2 |
| The compression strength | ≥220KPa |
| Fire proof rating | B1,B2,B3 |
| Application temperature | -50ºC-150ºC |
| Steel thickness | 0.4-0.7mm |
| Core material thickness | 50/60/75/100/120/150/200mm |
| Length | Less than 11.8m |
| The bending strength | ≥2450KN/m2 |
| Effective width | 1000mm |
| Usage | Roof/Wall |
